Significance of Refining
Stock preparation refining may well be considered the most important stage in the paper making process. Not only does it affect the smooth running of paper machine, but the refining stage determine the quality of the paper. Additionally, refining affects the furnish composition and energy consumption which directly influence production costs.
Each paper grade requires development of specific characteristics, which finally can be evaluated on the finished paper product, To ensure the desired results, correct selection of the stock preparation refining system is highly essential.
- High Efficiency
- Uniform refining result
- Low energy consumption
- Auto loading-unloading arrangement with anti-collision of stator & rotor
- Wide flow and consistency range
- Easy and quick installation and maintenance
- Low noise level
- Easy adaption to existing processes
Our Products
The CONIC FLO-REFINER Series
| Type | Capacity Range | Power Range |
|---|---|---|
| NC-00 | 5-50 t/d | 45-110 Kw |
| NC-01 | 10-200 t/d | 90-310 Kw |
| NC-02 | 35-300 t/d | 180-515 Kw |
| NC-03 | 70-500 t/d | 275-815 Kw |
CONIC FLO-REFINER
1) Stock Inlet
2) Stock Outlet
3) Fillings
4) Shaft Sealing
5) Shaft assembly
6) Auto loading arrangement
7) Gear coupling
8) Junk removal

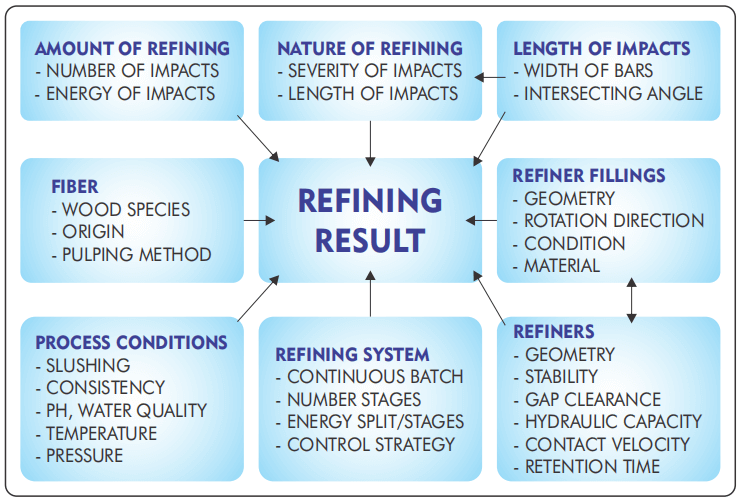

The most important factors and inter-relationships affecting the refining result.
