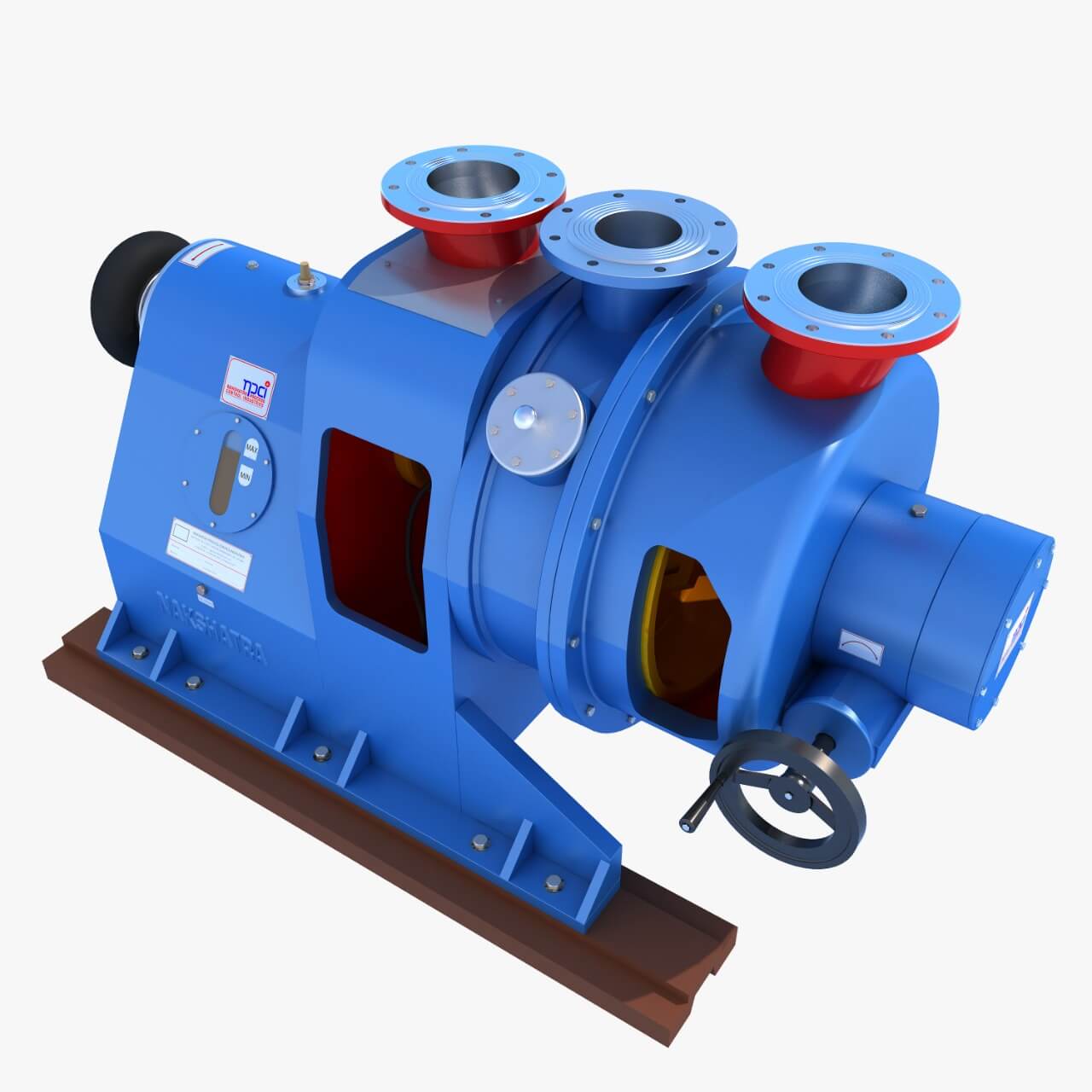

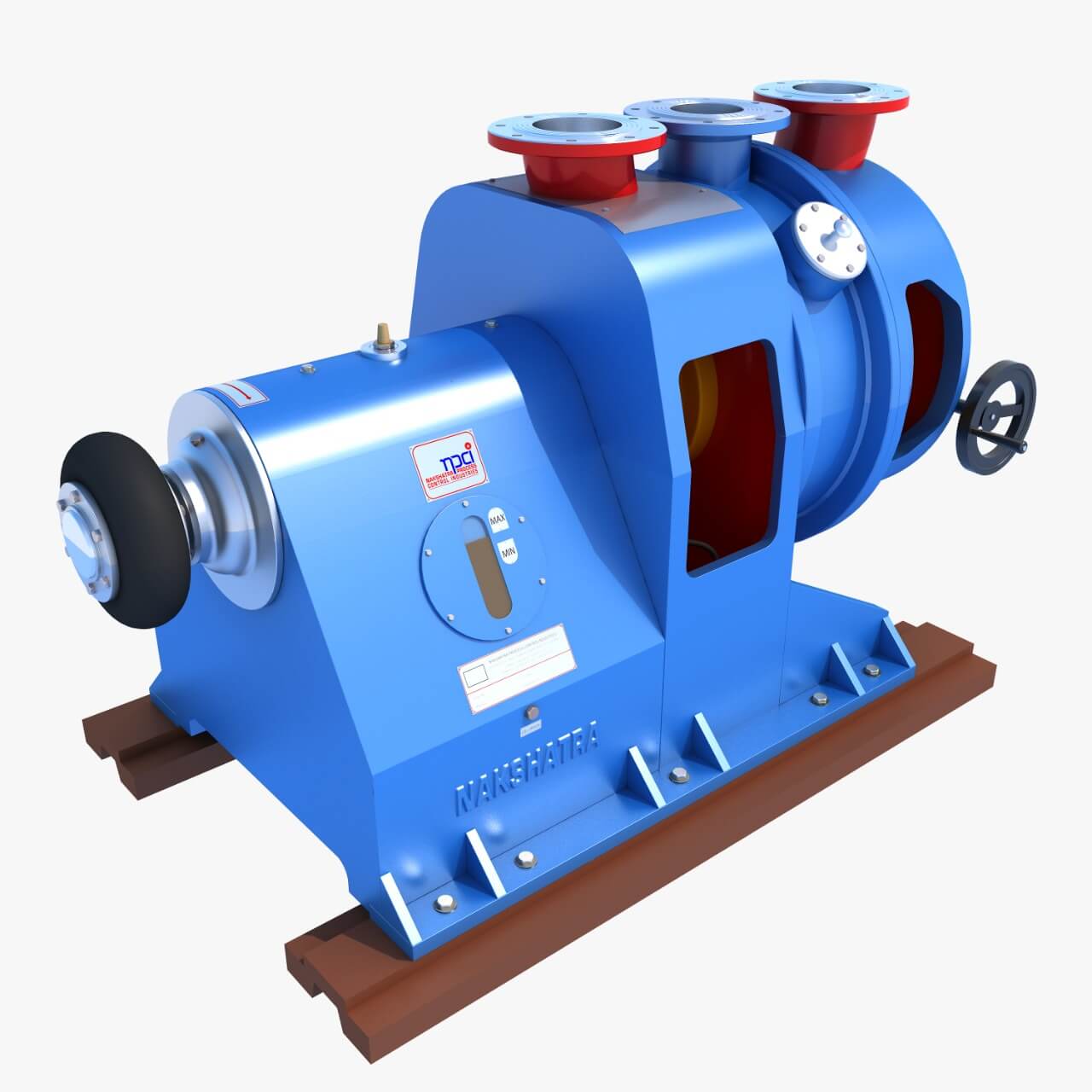

Tri Disc Refiner
Tri Disc Refiner
Nakshatra- The main source for refiners & refiner plates. Compact, Sturdy, Latest Mechanism and most important the refiner plates bar design to suits specific application are special feature. TDR is the result of ACCUMULATED PRECISION making this machine so unique in the paper world. Nakshatra TDR has more than one indicator of its super performance.
The inclusion of Splined shaft technology in NAKSHATRA TDR, permits rotor movement with longer force resulting in uniform floating condition under stock pressure of 1-2 Kg/cm^2. The use of unique and high technology of centrifugal casted martensitic stainless steel shaft sleeve offers maintenance free working for years and years.
MAIN SPECIFICATION
| TDR Model | TDP | Power(Kw) | Motor RPM |
|---|---|---|---|
| 13 | 10-15 | 37 | 980 |
| 17 | 15-40 | 110 | 980 |
| 21 | 40-70 | 200 | 980 |
| 22 | 40-80 | 250 | 980 |
| 24 | 80-120 | 315 | 720 |
| 26 | 120-150 | 350-400 | 720 |
| 28 | 150-180 | 400-450 | 600 |
| 30 | 180-200 | 400-500 | 600 |
| 34 | 200-300 | 500-700 | 525 |
| 38 | 200-450 | 600-900 | 500 |
